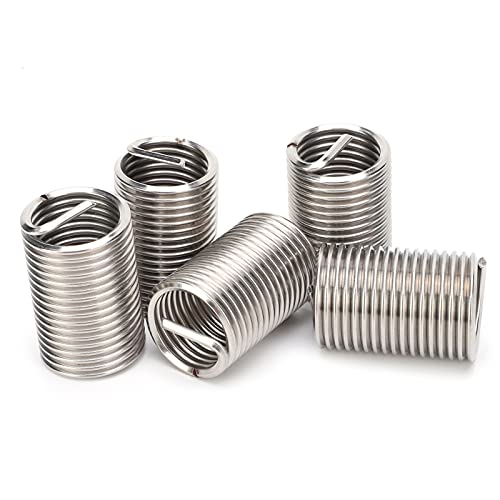

Stainless Steel Thread Repair Kit - 5Pcs High Strength Thread Inserts for Industrial Machinery, Automotive & Plumbing Applications

Product Description

Feature:1. Fit the wire screw set in the screw hole of the workpiece of aluminum alloy and other materials, will form a high‑strength, wear‑resistant, high‑accuracy standard female thread2. Repairing the threaded hole in a cost‑effective manner when a thread error occurs or a damaged female threaded hole is repaired3. Using wire thread inserts to convert between metric and inch thread holes is very convenient and fast4. Wire thread inserts are threaded sheaths, stainless steel threaded sleeves, wire sleeves, a new type of female threaded fasteners. Made of high‑strength, high‑accuracy diamond‑shaped cross‑section steel wire5. Applied to low‑strength engineering materials such as aluminum alloy, zinc alloy, alloy, copper, plastic, engineering plastics, etc., can significantly improve thread strength and wear resistanceSpec:Item Type: Thread InsertsMaterial: SUS304Model: M24x3x2.5DThread Specification: M24x3 (mm)Length After Installation: Approx. 60mm / 2.4inNumber of Turns Before Installation: 17.5Outside Diameter Before Installation: Approx. 28.5 ~ 29.1mm / 1.1 ~ 1.1inDiameter of Drilling Drill Bit for Installation: Approx. 24.8mm / 1inThread Protective Sleeve Model Specification Description: For Example: M3x0.5X1.5D, which means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5x3=4.5mm ), the length here refers to the length after installation.Package List:5 x Thread Inserts
